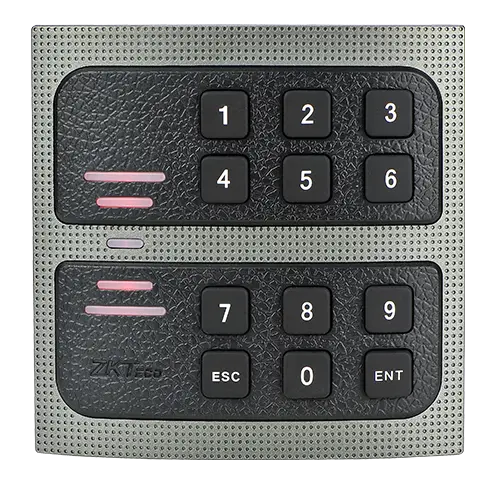

ZKTeco KR502E – Proximity with Keypad Access Card Reader
Read range of up to 10cm for proximity card and 5cm for Mifare card
Waterproof IP64 or IP65
-Read Range – KRxxx-E: Up to 10CM
-Reading Time – ≤200ms
-Input Port – External LED Control, External Buzzer Control
-Output Port – KRxxx-E: 26bit Wiegand (Default)
-Power/Current – DC 6-14V / Max.70mA
-LED – Red and Green LEDs
-Operating Temperature – -10°C to +65°C
-Material – ABS+PC with texture
-Operating Humidity – 10% to 90% relative humidity • non-condensing
-Beeper – Yes
-Index of Protection – KR502-E/M: IP64
-Standard Features – 125KHz RFID Card
-Communication – RS485
